ZEMIC-BM11-5KG
http://www.zemic.com.vn LOADCELL ZEMIC BM11 Stainless steel IP68 single ended bending beam. Hermetically sealed. Suitable for pallet, platform and small hopper scales..in Viet Nam by TPS Scales Zemic
|
MODEL
|
BM11
|
|
Maximum Capacity
|
5kg
|
|
Accuracy class
|
OIML R60 C3
|
|
Output sensitivity
|
2.0 ± 0.2 mv/V
|
|
Input resistance
|
(460 ± 50) Ω
|
|
Output resistance
|
(350 ± 3.5) Ω
|
|
Size loadcell
|
(120 x 20 x 23)mm
|
|
Production by
|
ZEMIC EURO
|
|
Distributor by
|
www.zemic.com.vn
|
|
Certificate
|
OIML , CE
|
Price:
3,200,000 VNĐ
Details

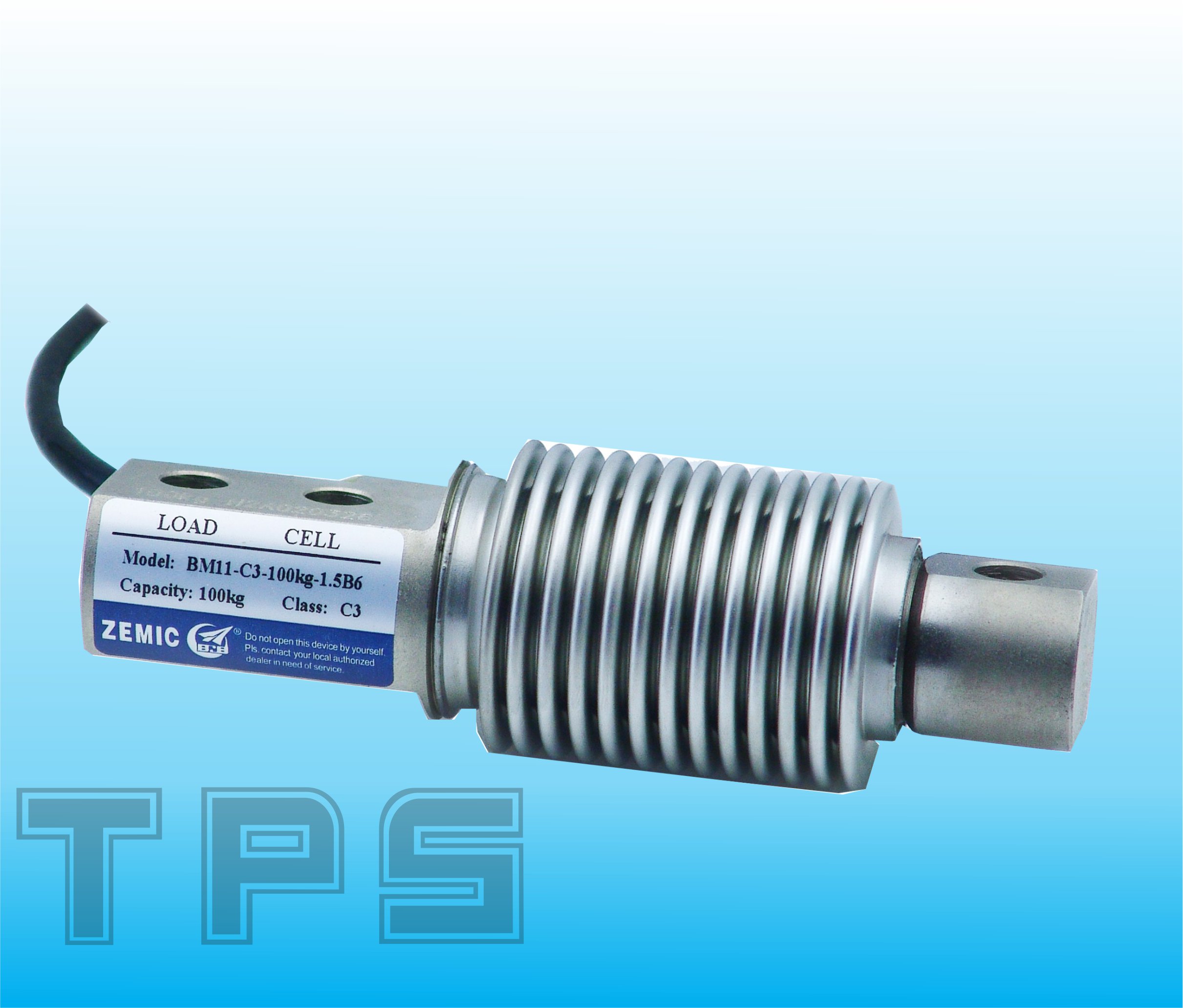

BM11 Load Cell zemic
- Stainless steel IP68 Single point Load Cell
- Hermetically sealed
- Suitable for electronic weighing equipment like beltscales, hopper scales, etc
- BM11 load cells are available in the capacities 5kg to 500kg.
- Strainless steel construction,welded with bellow,potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments
- Single point with bellow, easy installation,suitable for crane scales,
- mechanical conversion scales,hopper scales and other electronic weighing devices
- Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Features
Capacity 5kg to 500kg
High accuracy
Strainless steel construction.
Low profile and nice exterior.
With OIML approval
Products specification.
|
Capacity
|
kg
|
5/10/20/30/50/100/200/250/300/350/500
|
|
Accuracy class
|
|
C2
|
C3
|
A5S
|
A5M
|
B10S
|
B10M
|
|
Approval
|
|
|
OIML R60 C3
|
|
III 5000
multiform
|
|
III L10000
multiform
|
|
Maximum number of
verification
intervals
|
n max
|
2000
|
3000
|
5000
|
5000
|
10000
|
10000
|
|
Minimum load cell
verification interval
|
v min
|
Emax/5000
|
Emax
/10000
|
Emax
/15000
|
Emax
/15000
|
Emax
/10000
|
Emax
/10000
|
|
Combined error
|
(%FS)
|
≤±0.030
|
≤±0.020
|
≤±0.018
|
≤±0.026
|
≤±0.035
|
≤±0.050
|
|
Creep
|
(%FS/30min)
|
≤±0.024
|
≤±0.016
|
≤±0.012
|
≤±0.017
|
≤±0.030
|
≤±0.040
|
|
Temperature effect
on sensitivity
|
(%FS/10℃)
|
≤±0.017
|
≤±0.011
|
≤±0.009
|
≤±0.013
|
≤±0.030
|
≤±0.040
|
|
Temperature effect
on zero
|
(%FS/10℃)
|
≤±0.023
|
≤±0.015
|
≤±0.010
|
≤±0.014
|
≤±0.030
|
≤±0.020
|
|
Output sensitivity
|
(mv/v)
|
2.0±0.02
|
|
Input resistance
|
(Ω)
|
460±50
|
|
Output resistance
|
(Ω)
|
351±2
|
|
Insulation
resistance
|
(MΩ)
|
≥ 5000(50VDC)
|
|
Zero balance
|
(%FS)
|
1.0
|
|
Temperature,
compensated
|
(℃)
|
-10～+40
|
|
Temperature,
allowed
|
(℃)
|
-35～+65
|
|
Excitation,
Recommended
|
(V)
|
5～12(DC)
|
|
Excitation,Max
|
(V)
|
18(DC)
|
|
Safe overload
|
(%FS)
|
150
|
|
Ultimate overload
|
(%FS)
|
300
|
Outline Dimension mm(inch)
More detailed information about BM11
Technical document
