ZEMIC-BM14G-30T

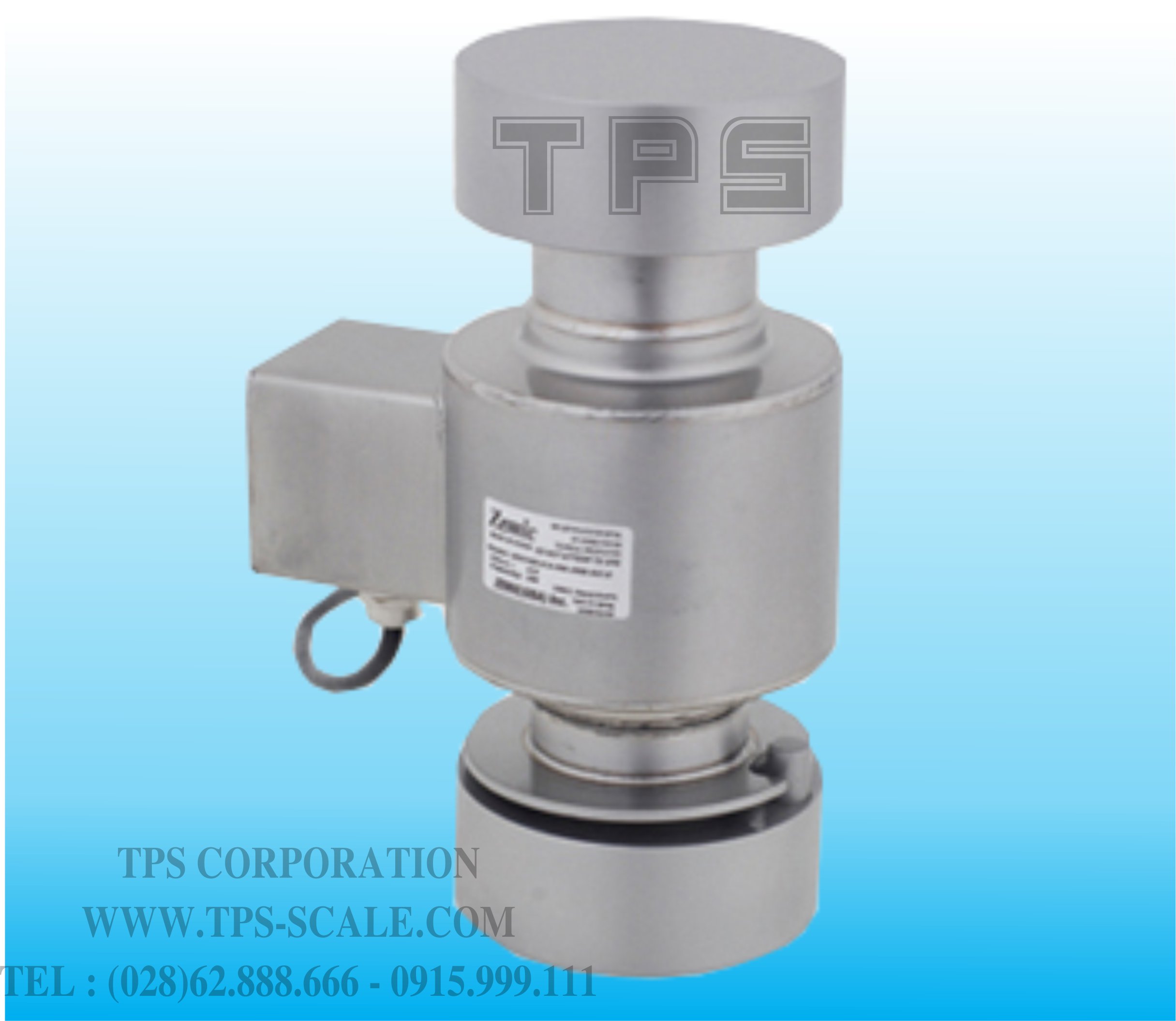

http://www.zemic.com.vn LOADCELL ZEMIC BM14G Stainless steel IP68 Compression Load Hermetically sealed, Suitable for vehicle and hopper scales and vehicle testing facilities, Built in surge arrestors High accuracy The double ended shear beam characteristics are similar to those of the single ended shear beam. in Viet Nam by TPS Scales Zemic
MODEL
|
BM14G
|
Maximum Capacity
|
30 Tấn
|
Accuracy class
|
OIML R60 C3
|
Output sensitivity
|
(2 ± 0.002 ) mV/V
|
Input resistance
|
(700 ± 4) Ω
|
Output resistance
|
(700 ± 1) Ω
|
Dimension hight
|
150 mm
|
Production by
|
ZEMIC EURO
|
Distributor by
|
www.zemic.com.vn
|
Certificate
|
OIML , CE
|
Price:
7,200,000 VNĐ
Details
◆BM14g load cells are available in the capacities 0.5t to 50t . ◆Strainless steel construction,hermetically welded,oil-proof, waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments. ◆Column structure, anti-reversal design,good self-aligning ability, suitable for electronic platform scales,automobile testing facilities, hopper scales and other electronic weighing devices. ◆Safe and anti-explosive product,can be used in atrocious environment and hazardous areas. |
Features ◆Capacity 0.5t to 50t . ◆High accuracy. ◆Strainless steel construction. ◆Easy installation and reliable performance. ◆With OIML approval. |
LOADCELL ZEMIC BM14G
Capacity |
t |
0.5/1/2/3/5/10/20/25/30/40/50 |
Accuracy class |
|
C2 |
C3 |
C4 |
A5S |
A5M |
Approval |
|
|
OIML R60 C3 |
OIML R60 C4 |
|
|
Maximum number of verification intervals |
n max |
2000 |
3000 |
4000 |
5000 |
5000 |
Minimum load cell verification interval |
v min |
Emax/5000 |
Emax/10000 |
Emax/14000 |
Emax/15000 |
Emax/15000 |
Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.018 |
≤±0.018 |
≤±0.026 |
Creep |
(%FS/30min) |
≤±0.024 |
≤±0.016 |
≤±0.012 |
≤±0.012 |
≤±0.017 |
Temperature effect on sensitivity |
(%FS/10℃) |
≤±0.017 |
≤±0.011 |
≤±0.009 |
≤±0.009 |
≤±0.013 |
Temperature effect on zero |
(%FS/10℃) |
≤±0.023 |
≤±0.015 |
≤±0.010 |
≤±0.010 |
≤±0.014 |
Output sensitivity |
(mv/v) |
2.0 ± 0.002 |
Input resistance |
( Ω ) |
700 ± 7 |
Output resistance |
( Ω ) |
703 ± 4 |
Insulation resistance |
(M Ω ) |
≥ 5000(50VDC) |
Zero balance |
(%FS) |
1.0 |
Temperature, compensated |
(℃) |
-10~+40 |
Temperature,allowed |
(℃) |
-35~+65 |
Excitation, Recommended |
(V) |
5~12(DC) |
Excitation,Max |
(V) |
18(DC) |
Safe overload |
(%FS) |
150 |
Ultimate overload |
(%FS) |
300 |
Technical document
