ZEMIC-H8C-100kg
http://www.zemic.com.vn LOADCELL ZEMIC H8C Nickel plated alloy steel IP67 shear beam load cell, Maximum platform size: 1500 x 1500 mm.in Viet Nam by TPS Scales Zemic H8C Beam Load Cell H8C - Zemic - 2 mv/v, 0.03% nonlinearity, 350/350 ohm 20 ft shielded 4 cond cable, nickel plated alloy steel, IP67. NTEP CC12-028
|
MODEL
|
H8C
|
|
Maximum Capacity
|
100kg
|
|
Accuracy class
|
OIML R60 C3
|
|
Output sensitivity
|
3.0 ± 0.05 mv/V
|
|
Input resistance
|
(350 ± 3.5) Ω
|
|
Output resistance
|
(351 ± 2) Ω
|
|
Size loadcell
|
(130 x 31.8 x 31.8)mm
|
|
Production by
|
ZEMIC EURO
|
|
Distributor by
|
www.zemic.com.vn
|
|
Certificate
|
OIML , CE
|
Price:
2,200,000 VNĐ
Details

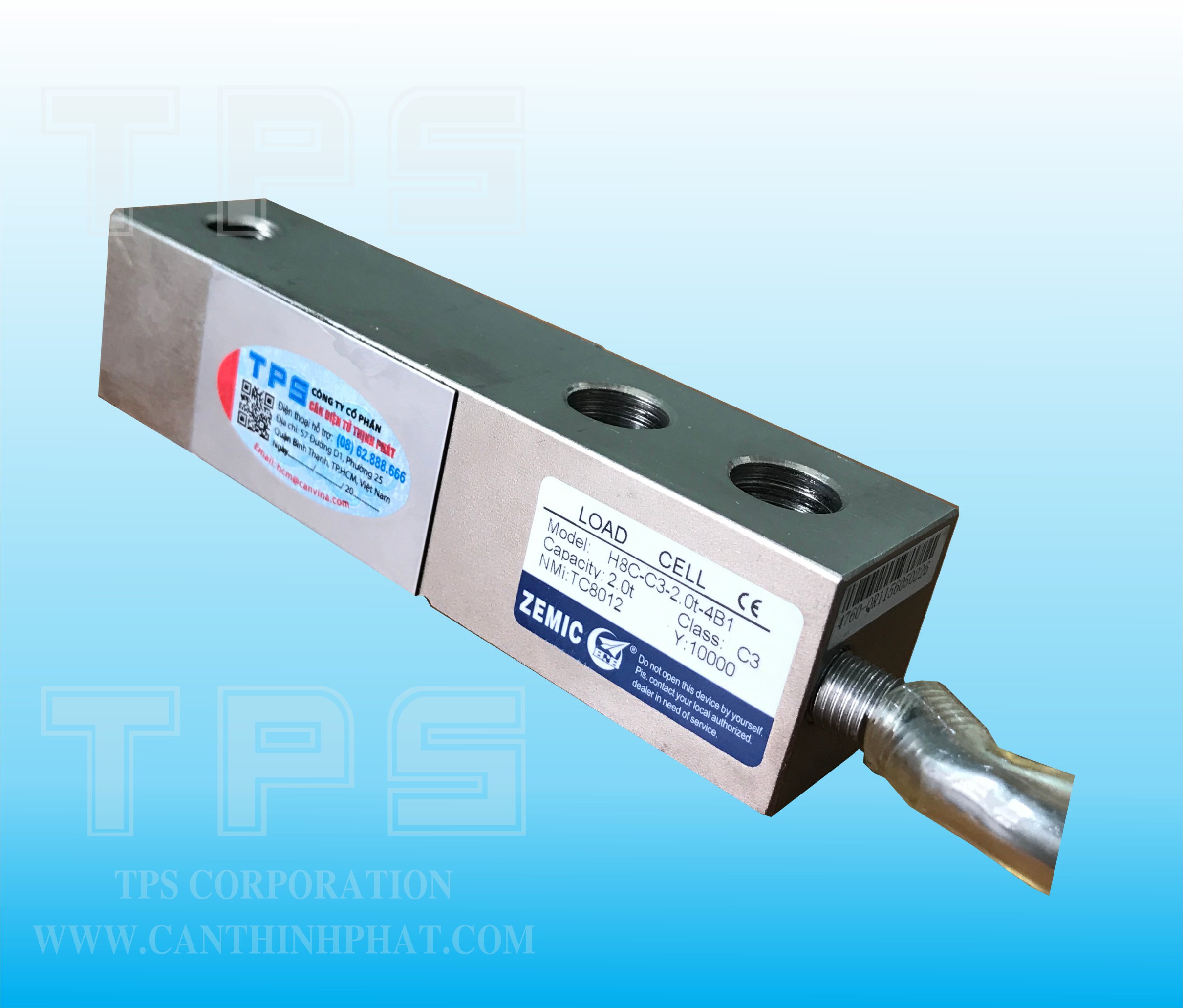

LOADCELL ZEMIC H8C
H8C with OIML and NTEP approval
1. H8C load cells are available in the capacities 1Klb to 20Klb and 500kg to 10t.
2. Alloy steel, sealed by adhesive inside, oil-proof, waterproof and anti-corrosion, suitable for all kinds of environment.
3. Single shear beam, easy for installation, suitable for electronic platform scales, hopper scales and other electronic weighing devices.
4. Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Features
1. Capacity:1Klb to 20Klb and 0.5t to 10t.
2. High accuracy.
3. Alloy steel construction.
4. Low profile.
5. With OIML approval.
6. With NTEP approval.
Specifications
| Capacity |
t |
0. 5/1/1.5/2/2.5/3/5/10 |
| Klb |
1/1.5/2/2.5/3/4/5/5KSE/7.5/10/15/20 |
| Accuracy class |
|
C2 |
C3 |
C4 |
A5M |
B10M |
| Approval |
|
|
OIML R60 C3 |
|
III 5000
multiford |
III L 10000
multiford |
Maximum number of
verification intervals |
n max |
2000 |
3000 |
4000 |
5000 |
10000 |
Minimum load cell
verification interval |
v min |
Emax/5000 |
Emax
/10000 |
Emax
/14000 |
Emax
/15000 |
Emax
/10000 |
| Combined error |
(%FS) |
<= +/- 0.030 |
<= +/- 0.020 |
<= +/- 0.018 |
<= +/- 0.026 |
<= +/- 0.050 |
| Creep |
%FS/30min |
<= +/- 0.024 |
<= +/- 0.016 |
<= +/- 0.012 |
<= +/- 0.017 |
<= +/- 0.040 |
Temperature effect
on sensitivity |
(%FS/10℃) |
<= +/- 0.017 |
<= +/- 0.011 |
<= +/-0.009 |
<= +/- 0.013 |
<= +/- 0.040 |
Temperature effect
on zero |
(%FS/10℃) |
<= +/- 0.023 |
<= +/- 0.015 |
<= +/- 0.010 |
<= +/- 0.014 |
<= +/- 0.020 |
| Output sensitivity |
(mv/v) |
2.0 +/-0.002 |
3.0+/-0.003 |
| Input resistance |
(Ω) |
350+/-3.5 |
| Output resistance |
(Ω) |
350+/-3.5 |
| Insulation resistance |
(MΩ) |
>=5000(100VDC) |
| Zero balance |
(%FS) |
1.0 |
Temperature,
compensated |
(℃) |
-10~+40 |
| Temperature,allowed |
(℃) |
-35~+65 |
Excitation,
Recommended |
(V) |
5~12(DC) |
| Excitation,Max |
(V) |
18(DC) |
| Safe overload |
(%FS) |
150 |
| Ultimate overload |
(%FS) |
300 |
Note:Output sensitivity of S1 type is 2.0 ±0.002
