ZEMIC-HM9B-50T
http://www.zemic.com.vn LOADCELL ZEMIC BM11 Nickel plated alloy steel dual shear beam load cell. Suitable for truck, track, hopper and other electronic weighing devices. Suitable for truck, track, hopper and other electronic weighing devices in Viet Nam by TPS Scales Zemic
|
MODEL
|
HM9B
|
|
Maximum Capacity
|
50 Tấn
|
|
Accuracy class
|
OIML R60 C3
|
|
Output sensitivity
|
(2 ± 0.002 ) mV/V
|
|
Input resistance
|
(700 ± 4) Ω
|
|
Output resistance
|
(700 ± 1) Ω
|
|
Dimension hight
|
267 mm
|
|
Production by
|
ZEMIC EURO
|
|
Distributor by
|
www.zemic.com.vn
|
|
Certificate
|
OIML , CE
|
Price:
3,500,000 VNĐ
Details

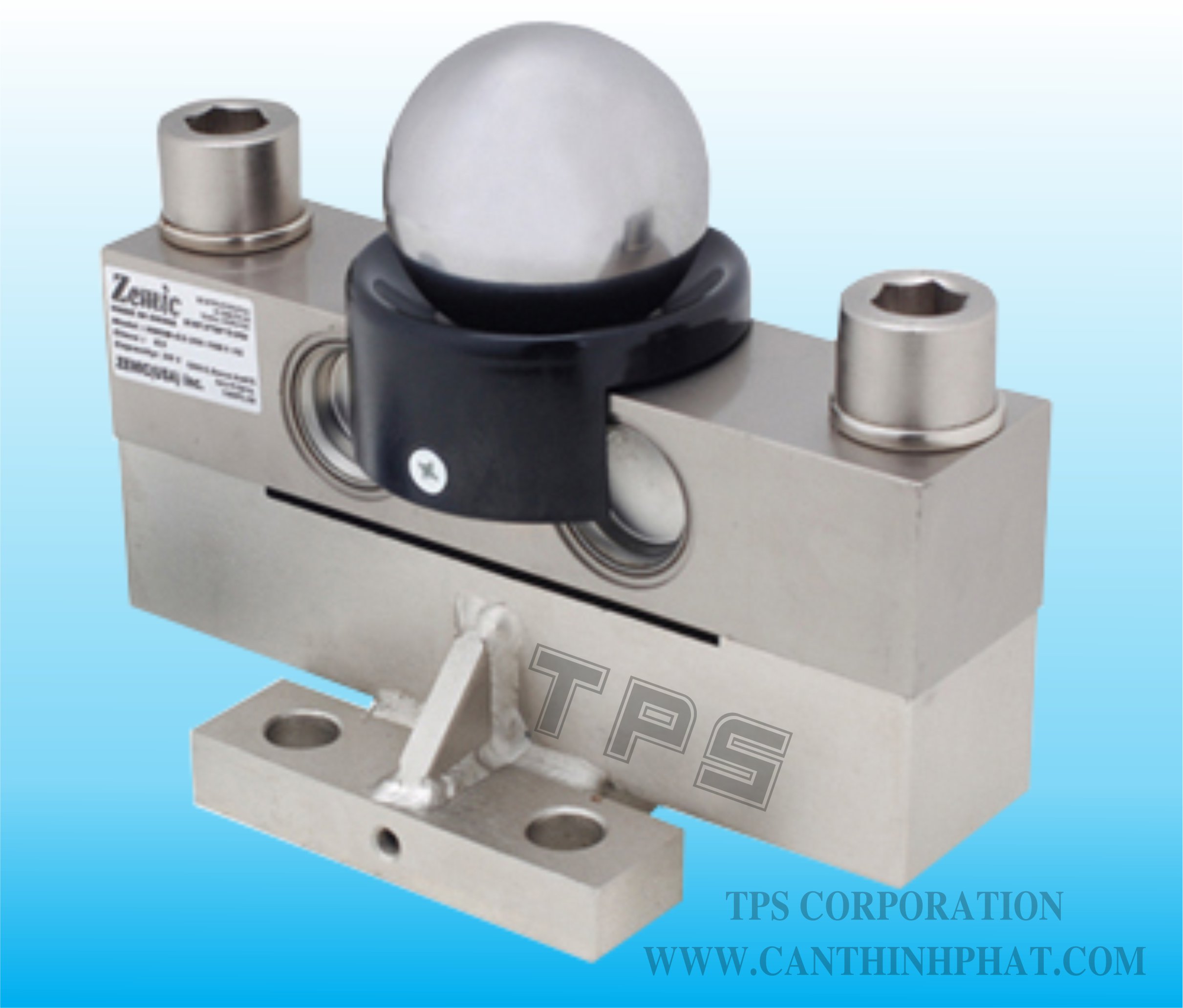

ZEMIC LOADCELL HM9B
1.Alloy steel construction, nickel plated, hermetically elded,oil-proof, waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
2.Dual shear beam, Suitable for electronic truck scales, railway scales and other electronic weighing devices.
3. It is safety and anti-explosion product that can be used in atrocious weather and hazardous areas.
HM9B
|
Capacity
|
t
|
10/20/25/30/40SE/40/50
|
|
Accuracy
|
|
C1
|
C2
|
C3
|
A5M
|
B10M
|
|
Approvals
|
|
|
|
OIML R60 C3
|
|
|
|
Maximum number of
verification intervals
|
n max
|
1000
|
2000
|
3000
|
5000
|
10000
|
|
Minimum load cell
verification interval
|
v min
|
Emax/3000
|
Emax/5000
|
Emax/7500
|
Emax
/15000
|
Emax
/10000
|
|
Combined error
|
(%FS)
|
≤±0.050
|
≤±0.030
|
≤±0.020
|
≤±0.026
|
≤±0.050
|
|
Creep
|
(%FS/30min)
|
≤±0.038
|
≤±0.024
|
≤±0.016
|
≤±0.017
|
≤±0.040
|
|
Temperature effect
on sensitivity
|
(%FS/10℃)
|
≤±0.028
|
≤±0.017
|
≤±0.011
|
≤±0.013
|
≤±0.040
|
|
Temperature effect
on zero
|
(%FS/10℃)
|
≤±0.047
|
≤±0.023
|
≤±0.015
|
≤±0.014
|
≤±0.020
|
|
Output sensitivity
|
(mv/v)
|
2.0±0.002
|
2.3±0.002
|
2.4±0.002
|
1.9±0.002
|
1.8±0.002
|
|
Input resistance
|
(Ω)
|
700 ±7
|
775 ±5
|
750 ±7
|
|
Output resistance
|
(Ω)
|
700 ±7
|
|
Insulation resistance
|
(MΩ)
|
≥ 5000(50VDC)
|
|
Zero balance
|
(%FS)
|
1.5
|
|
Temperature, compensated
|
(℃)
|
-10～+40
|
|
Temperature,allowed
|
(℃)
|
-35～+65
|
|
Excitation, Recommended
|
(V)
|
5～12(DC)
|
|
Excitation,Max
|
(V)
|
18(DC)
|
|
Safe overload
|
(%FS)
|
150
|
|
Ultimate overload
|
(%FS)
|
300
|
