ZEMIC-L6E3-300kg
http://www.zemic.com.vn LOADCELL ZEMIC L6E3 single point load cell, Aluminium-alloy IP65, Colourless anodized, Suitable for pricing scales, counting scales, bench scales, medical scales, etc. Maximum platform size: 400 x 400 mm.in Viet Nam by TPS Scales
|
MODEL
|
L6E3
|
|
Maximum Capacity
|
300kg
|
|
Accuracy class
|
OIML R60 C3
|
|
Output sensitivity
|
2.0 ± 0.2 mv/V
|
|
Input resistance
|
( 406 ± 6 ) Ω
|
|
Output resistance
|
( 350 ± 3 ) Ω
|
|
Size loadcell
|
(150 x 44 x 40)mm
|
|
Production by
|
ZEMIC EURO
|
|
Distributor by
|
www.zemic.com.vn
|
|
Certificate
|
OIML , CE
|
Price:
1,250,000 VNĐ
Details

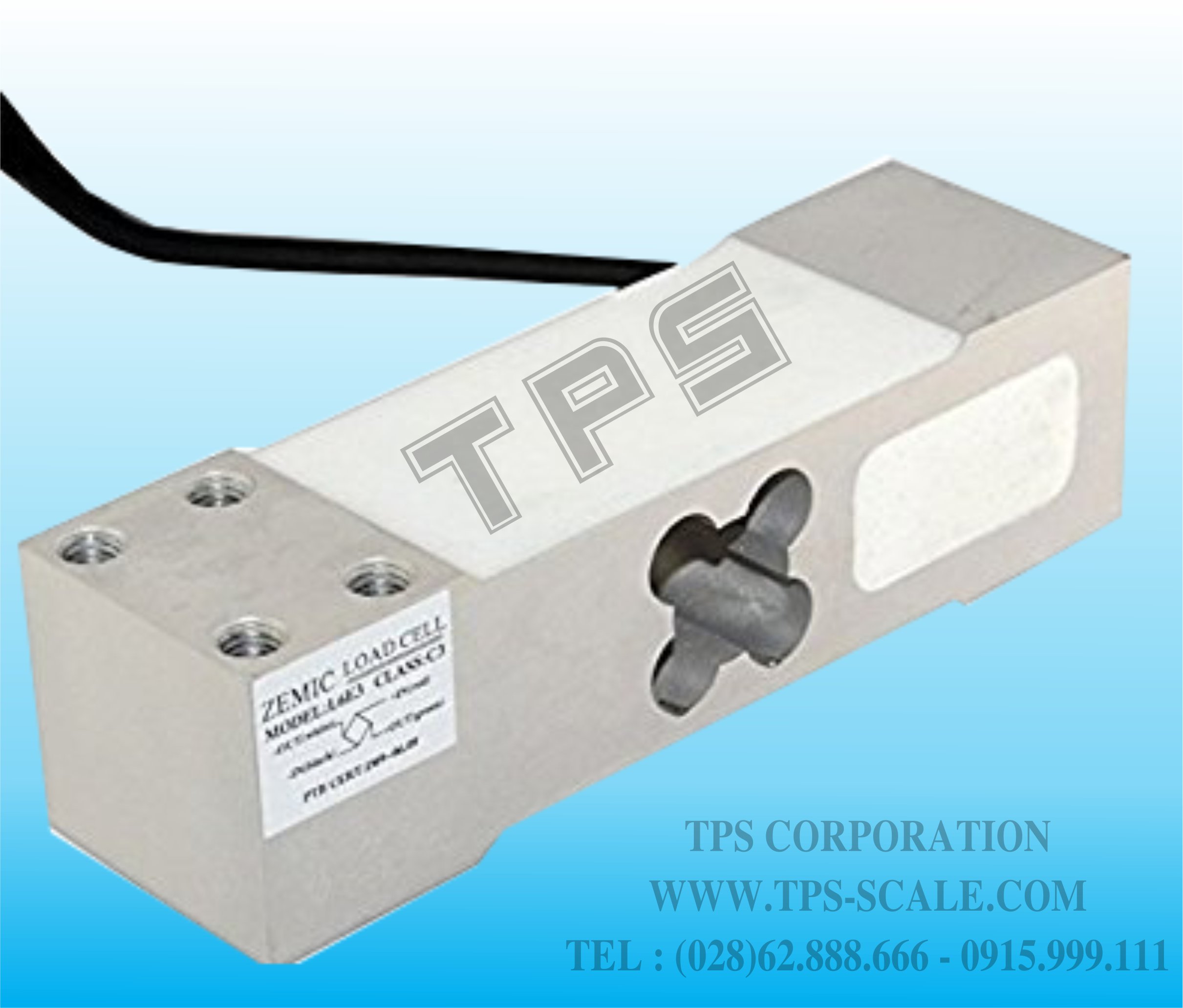

LOADCELL ZEMIC L6E3
1. L6E3 load cells are available in the capacities 50kg to 300kg.
2. Aluminum construction with parallel beam.
3. Silicon adhesive sealed, surface anodized and anti-corrosion.
4. Intergral structure and easy installation.
5. Suitable for electronic pricing scales, platform scales and other electronic weighing devices.
6. Max. platform size: 450x450mm.
Specifications:
| Capacity |
kg |
50/100/150/200/250/300 |
| Accuracy |
|
C3D |
C3 |
C3G |
| Approvals |
|
|
OIML R60 C3 |
|
Maximum number of
verification intervals |
n max |
2500 |
3000 |
4000 |
| Minimum load cell verification interval |
v min |
Emax/5000 |
Emax/7000 |
Emax/11000 |
| Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.015 |
| Creep |
(%FS/30min) |
≤±0.020 |
≤±0.0167 |
≤±0.0125 |
| Temperature effect on sensitivity |
(%FS/10℃) |
≤±0.021 |
≤±0.0175 |
≤±0.0131 |
| Temperature effect on zero |
(%FS/10℃) |
≤±0.028 |
≤±0.020 |
≤±0.0127 |
| Output sensitivity |
(mv/v) |
2.0±0.2 |
| Input resistance |
(Ω) |
409±6 |
| Output resistance |
(Ω) |
350±3 |
| Insulation resistance |
(MΩ) |
≥5000(50VDC) |
| Zero balance |
(%FS) |
2 |
| Temperature,compensated |
(℃) |
-10～+40 |
| Temperature,operating |
(℃) |
-35～+65 |
| Excitation, Recommended |
(V) |
5～12(DC) |
| Excitation,Max |
(V) |
18(DC) |
| Safe overload |
(%FS) |
150 |
| Ultimate overload |
(%FS) |
300 |
| Corner correction |
|
0.02% load value/100mm |
