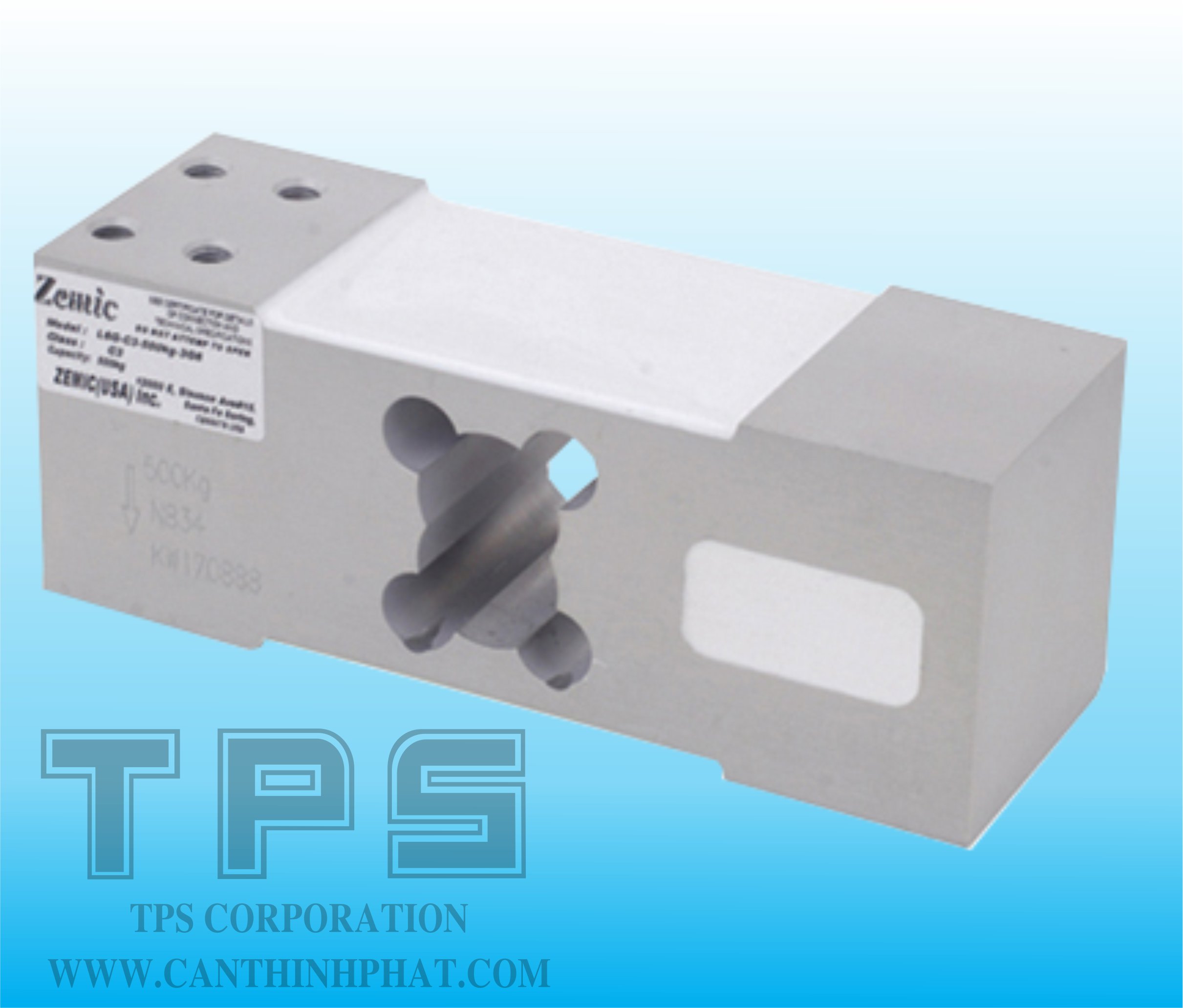

ZEMIC-L6G-500kg
http://www.zemic.com.vn LOADCELL ZEMIC L6G single point load cell, Aluminium-alloy IP65, Suitable for single and double load cells structured platform scales. Maximum platform size: 600 x 600 mm.in Viet Nam by TPS Scales
|
MODEL
|
L6G
|
|
Maximum Capacity
|
500kg
|
|
Accuracy class
|
OIML R60 C3
|
|
Output sensitivity
|
2.0 ± 0.2 mv/V
|
|
Input resistance
|
(409 ± 6) Ω
|
|
Output resistance
|
(350 ± 3) Ω
|
|
Size loadcell
|
(174 x 65 x 60) mm
|
|
Production by
|
ZEMIC EURO
|
|
Distributor by
|
www.zemic.com.vn
|
|
Certificate
|
OIML , CE
|
Price:
1,500,000 VNĐ
Details
Specifications
1.Capacity:50kg to 600kg . Suit for 600x600mm platform
2.High accuracy, C3.
3.Alumium construction
4.With OIML approval.
High accuracy.
Max. platform size:600x600mm.
Intergral installation.
With OIML approval
1. L6G load cells are available in the capacities 50kg to 600kg..
2. Alumium construction with parallel beam.
3. Silicon adhesive sealed, surface anodized and anti-corrosion.
4. Intergral structure and easy installation.
5. Suitable for pricing scales, platform scales and other electronic weighing devices.
Specifications L6G
|
Capacity
|
kg
|
500kg
|
|
Accuracy
|
|
C3D
|
C3
|
C3G
|
| Approvals |
|
|
OIML R60 C3
|
|
|
Maximum numberof
verification intervals
|
n max
|
2500
|
3000
|
4000
|
|
Minimum load cell
verification interval
|
v min
|
Emax/5000
|
Emax/7000
|
Emax/11000
|
|
Combined error
|
(%FS)
|
≤±0.030
|
≤±0.020
|
≤±0.015
|
|
Creep
|
(%FS/30min)
|
≤±0.020
|
≤±0.0167
|
≤±0.0125
|
|
Temperature effect on sensitivity
|
(%FS/10°C)
|
≤±0.021
|
≤±0.0175
|
≤±0.0131
|
|
Temperature effect on zero
|
(%FS/10°C)
|
≤±0.028
|
≤±0.020
|
≤±0.0127
|
|
Output sensitivity
|
(mv/v)
|
2.0±0.2
|
|
Input resistance
|
(Ω)
|
406±6/1065±15
|
|
Output resistance
|
(Ω)
|
350±3/1000±10
|
|
Insulation resistance
|
(MΩ)
|
≥5000(50VDC)
|
|
Zero balance
|
(%FS)
|
2
|
|
Temperature,compensated
|
(°C)
|
-10~+40
|
|
Temperature,operating
|
(°C)
|
-35~+65
|
|
Excitation,Recommended
|
(V)
|
5~12(DC)
|
|
Excitation,Max
|
(V)
|
18(DC)
|
|
Safe overloada
|
|
|
| |
(%FS)
|
300
|
| Corner correction |
|
0.02% load value/100mm
|
