ZEMIC-BM8H-1.5T
http://www.zemic.com.vn LOADCELL ZEMIC BM8H BM8H shear beam load cell - Zemic Europe Stainless steel shear beam load cell for hopper, platform and pallet scales.. in Viet Nam by TPS Scales Zemic
|
MODEL
|
BM8H
|
|
Maximum Capacity
|
1,5 T
|
|
Accuracy class
|
OIML R60 C3
|
|
Output sensitivity
|
2.0 ± 0.02 mv/V
|
|
Input resistance
|
(350 ± 3.5) Ω
|
|
Output resistance
|
(351 ± 2) Ω
|
|
Size loadcell
|
(130 x 31.8 x 31.8)mm
|
|
Production by
|
ZEMIC EURO
|
|
Distributor by
|
www.zemic.com.vn
|
|
Certificate
|
OIML , CE
|
Giá:
3,200,000 VNĐ
Thông tin chi tiết

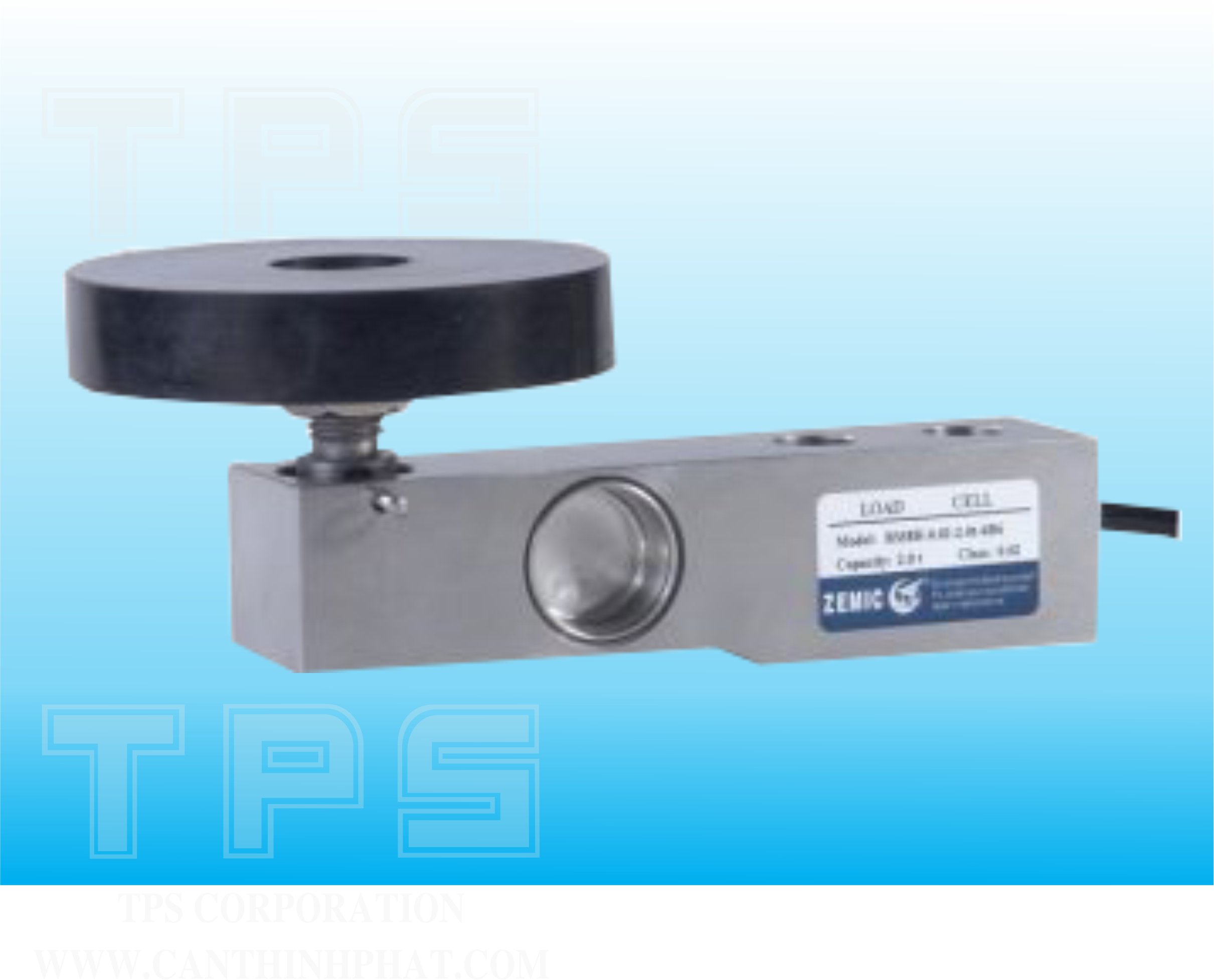

Product BM8H Load Cell zemic
- Stainless steel IP68 Shear Beam Load Cell With high reliability
- Suitable for platform scales, track scales, hopper scales and other weighing devices.
Products specification
- BM8H load cells are available in the capacities 500lb to 10Klb and 0.25t to 5t.
- Strainless steel construction, hermetically welded, potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.
- Single shear beam,easy for installation,suitable for electronic truck scales,track scales and other electronic weighing devices
- Safe and anti-explosive product, can be used in atrocious environment and hazardous areas
Features
Capacity:500lb to 10Klb and 0.25t to 5t.
High accuracy
Strainless steel construction
Low profile
Specifications
|
Capacity
|
t
|
0.25/0.5/1/2/5
|
|
Klb
|
0.5/1/2.5/4/5/10
|
|
Accuracy
|
|
C2
|
C3
|
C4
|
A5M
|
B10M
|
|
|
|
|
OIML R60 C3
|
|
|
|
|
Maximum number of
verification intervals
|
n max
|
2000
|
3000
|
4000
|
5000
|
10000
|
|
Minimum load cell
verification interval
|
v min
|
Emax/5000
|
Emax/7500
|
Emax
/14000
|
Emax
/15000
|
Emax
/10000
|
|
Combined error
|
(%FS)
|
≤±0.030
|
≤±0.020
|
≤±0.018
|
≤±0.026
|
≤±0.050
|
|
Creep
|
(%FS/30min)
|
≤±0.024
|
≤±0.016
|
≤±0.012
|
≤±0.017
|
≤±0.040
|
|
Temperature effect
on sensitivity
|
(%FS/10℃)
|
≤±0.017
|
≤±0.011
|
≤±0.009
|
≤±0.013
|
≤±0.040
|
|
Temperature effect
on zero
|
(%FS/10℃)
|
≤±0.023
|
≤±0.015
|
≤±0.010
|
≤±0.014
|
≤±0.020
|
|
Output sensitivity
|
(mv/v)
|
2.0±0.02
|
|
Input resistance
|
(Ω)
|
1000 ±10
|
350±3.5
|
|
Output resistance
|
(Ω)
|
1004 ±5
|
351±2
|
|
Insulation resistance
|
(MΩ)
|
≥ 5000(50VDC)
|
|
Zero balance
|
(%FS)
|
1.0
|
|
Temperature,
compensated
|
(℃)
|
-10～+40
|
|
Temperature,allowed
|
(℃)
|
-35～+65
|
|
Excitation,
Recommended
|
(V)
|
5～12(DC)
|
|
Excitation,Max
|
(V)
|
18(DC)
|
|
Safe overload
|
(%FS)
|
150
|
|
Ultimate overload
|
(%FS)
|
300
|
Outline Dimension mm(inch)
|
Capacity
|
L
|
L1
|
L2
|
L3
|
L4
|
H
|
H1
|
H2
|
W
|
D
|
d
|
M
|
|
50㎏
500lb
|
130.0
(5.12)
|
57
(2.24)
|
15.5
(0.62)
|
25.4
(1.0)
|
76.2
(3.0)
|
31.8
(1.24)
|
25.5
(1.01)
|
14.2
(0.55)
|
31.8
(1.23)
|
20.5
(0.81)
|
13
(0.51)
|
M12
1/2-20UNF
|
|
500㎏
1Klb
|
130.0
(5.12)
|
57.1
(2.25)
|
15.5
(0.62)
|
25.4
(1.0)
|
76.2
(3.0)
|
31.8
(1.24)
|
26
(1.02)
|
14.2
(0.55)
|
31.8
(1.23)
|
20.5
(0.81)
|
13
(0.51)
|
M12
1/2-20UNF
|
|
1.0t
2Klb,2.5K
|
130.0
(5.12)
|
57.1
(2.25)
|
15.5
(0.62)
|
25.4
(1.0)
|
76.2
(3.0)
|
31.8
(1.24)
|
27.95
(1.1)
|
14.2
(0.55)
|
31.8
(1.23)
|
20.5
(0.81)
|
13
(0.51)
|
M12
1/2-20UNF
|
|
1.5t,2.0t
4Klb,5Klb
|
130.0
(5.12)
|
57.1
(2.25)
|
15.5
(0.62)
|
25.4
(1.0)
|
76.2
(3.0)
|
35.9
(1.41)
|
31.95
(1.26)
|
14.2
(0.55)
|
31.8
(1.23)
|
20.5
(0.81)
|
13
(0.51)
|
M12
1/2-20UNF
|
|
5.0t
10Klb
|
172
(6.71)
|
76.2
(3.0)
|
19.1
(0.75)
|
38.1
(1.5)
|
95.3
(3.75)
|
44
(1.72)
|
40
(1.57)
|
20
(0.78)
|
38
(1.48)
|
30.2
(1.19)
|
20.5
(0.8)
|
M20
3/4-20UNF
|
More detailed information about BM8H
