http://www.zemic.com.vn LOADCELL ZEMIC BM14G Nickel plated alloy steel IP67 “S” type load cell Tension and compression applications. Also available in imperial capacities and dimensions Suitable for hanging, hopper and other weighing devices. in Viet Nam by TPS Scales Zemic
|
MODEL
|
H3
|
|
Maximum Capacity
|
750 kg
|
|
Accuracy class
|
OIML R60 C3
|
|
Output sensitivity
|
(2.0 ± 0.004) mV/V
|
|
Input resistance
|
(350 ± 3.5 ) Ω
|
|
Output resistance
|
(351 ± 2.0 ) Ω
|
|
Size loadcell
|
(76.2 x 50.8 x 25.4)mm
|
|
Production by
|
ZEMIC EURO
|
|
Distributor by
|
www.zemic.com.vn
|
|
Certificate
|
OIML , CE
|
Giá:
2,200,000 VNĐ
Thông tin chi tiết

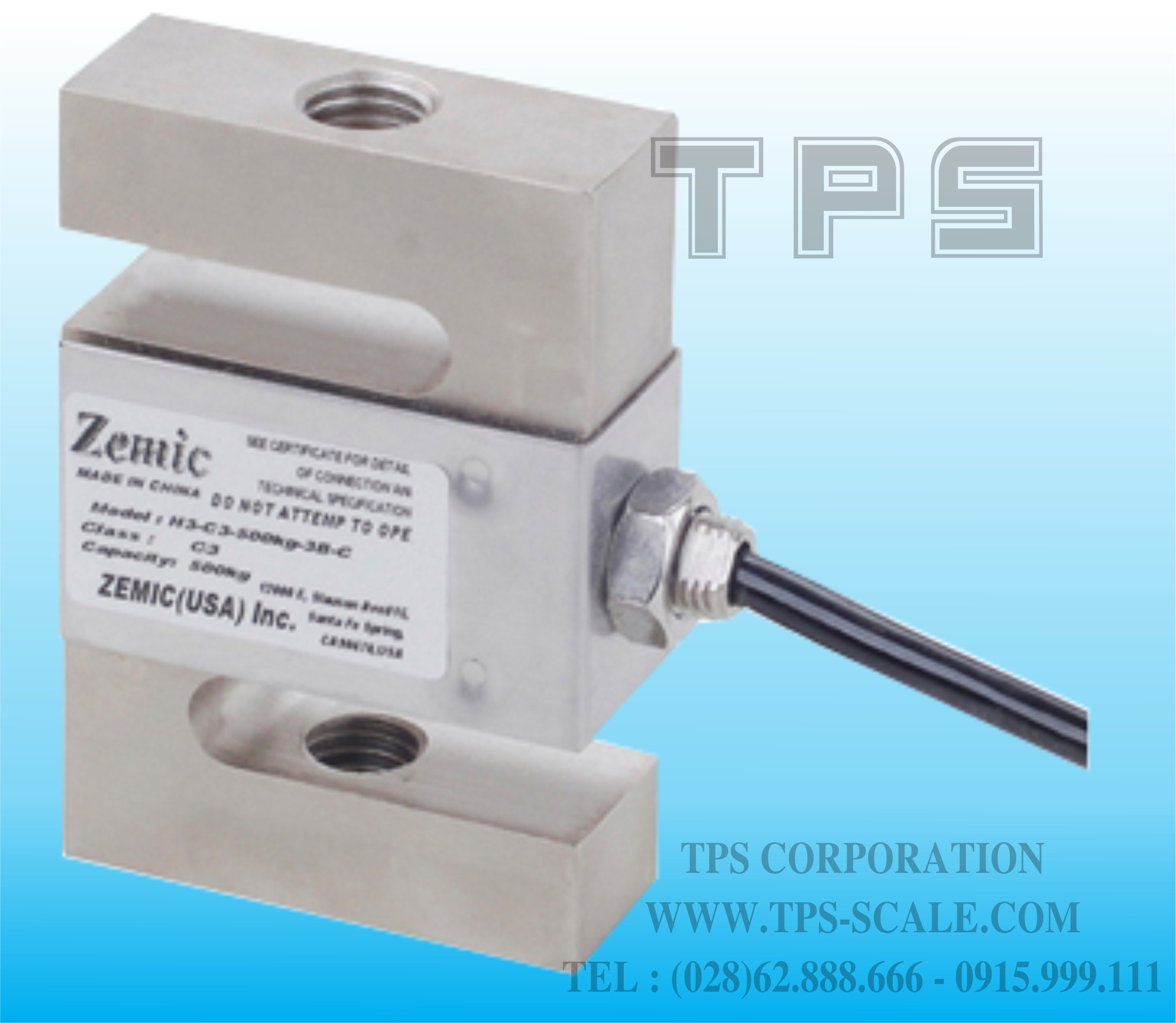

LOADCELL ZEMIC H3
1. H3 load cells are available in the capacities 25kg to 30t and 100lb to 20klb.
2. Alloy steel,sealed by adhesive inside,oil-proof,waterproof and anti-corrosion,suitable for all kinds of environments.
3. S beam design, tension and/or compression loading possible, easy installation, suitable for crane scale, mechanical
conversion scale, hopper scale and other electronic weighing devices.
4. Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Specifications:
| Capacity |
L |
H |
W1 |
W |
M |
H1 |
| 25～50㎏ |
76.2 (3.0) |
50.8 (2.0) |
12.7 (0.5) |
16.1 (0.63) |
M8 |
15.7 (0.62) |
| 0.1～1.5t |
76.2 (3.0) |
50.8 (2.0) |
19.0 (0.75) |
22.4 (0.88) |
M10×1.5 |
15.3 (0.60) |
| 0.2～0.75t |
76.2 (3.0) |
50.8 (2.0) |
19.0 (0.75) |
22.4 (0.88) |
M12×1.75 |
13.6 (0.54) |
| 1～1.5t |
76.2 (3.0) |
50.8 (2.0) |
25.4 (1.0) |
28.8 (1.13) |
M12×1.75 |
12.1 (0.48) |
| 2～5t |
101.6 (4.0) |
76.2 (3.0) |
25.4 (1.0) |
28.8 (1.13) |
M20×1.5 |
20 (0.79) |
| 7.5～10t |
175 (6.89) |
125 (4.92) |
50 (1.97) |
/ |
M33×3 |
40.2 (1.58) |
| 15～20t |
200 (7.89) |
160 (6.3) |
60 (2.36) |
/ |
M42×3 |
51 (2.01) |
| 30t |
230 (9.06) |
190 (7.48) |
80 (3.15) |
/ |
M42×3 |
57.5 (2.26) |
| 100～300lb |
63.5 (2.5) |
50.8 (2.0) |
12.7 (0.5) |
15.9 (0.63) |
1/4—28UNF |
10.1(0.4) |
| 500lb |
63.5 (2.5) |
50.8 (2.0) |
19.05 (0.75) |
22.25 (0.88) |
1/2—20UNF |
| 0.75～1.5klb |
63.5 (2.5) |
50.8 (2.0) |
19.05 (0.75) |
22.25 (0.88) |
1/2—20UNF |
| 2～2.5klb |
63.5 (2.5) |
50.8 (2.0) |
25.4 (1.0) |
28.6 (1.13) |
1/2—20UNF |
| 3klb |
101.6 (4.0) |
76.2 (3.0) |
25.4 (1.0) |
28.6 (1.13) |
1/2—20UNF |
15.24 (0.6) |
| 5～10klb |
101.6 (4.0) |
76.2 (3.0) |
25.4 (1.0) |
28.6 (1.13) |
3/4—16UNF |
15.24 (0.6) |
| 15klb |
139.7 (5.5) |
101.6 (4.0) |
31.75 (1.25) |
34.95 (1.38) |
1—14UNS |
31 (1.22) |
| 20klb |
177.8 (7.0) |
127 (5.0) |
50.8 (2.0) |
54 (2.13) |
5/4—12UNF |
39.9 (1.57) |
Specifications:
| Capacity |
t |
0.025/0.05/0.1/0.15/0.2/0.25/0.3/0.5/0.6/0.75/1/1.5/2/2.5/3/5/7.5/10/15/20/30 |
| lb |
100/200/250/300/500/750/1K/1.5K/2K/2.5K/3K/5K/10K/15K/20K |
| Accuracy |
|
C2 |
C3 |
C4 |
A5S |
A5M |
B10S |
B10M |
| Approval |
|
|
OIML
R60 C3 |
OIML
R60 C4 |
|
|
|
|
Maximum
number of
verification
intervals |
n max |
2000 |
3000 |
4000 |
5000 |
5000 |
10000 |
10000 |
Minimum
load cell
verification
interval |
v min |
Emax
/5000 |
Emax
/10000 |
Emax
/14000 |
Emax
/15000 |
Emax
/15000 |
Emax
/10000 |
Emax
/10000 |
Combined
error |
%FS |
≤±0.030 |
≤±0.020 |
≤±0.018 |
≤±0.018 |
≤±0.026 |
≤±0.035 |
≤±0.050 |
| Creep |
%FS
/30min |
≤±0.024 |
≤±0.016 |
≤±0.012 |
≤±0.012 |
≤±0.017 |
≤±0.030 |
≤±0.040 |
Temperature
effect
on sensitivity |
%FS/10℃ |
≤±0.017 |
≤±0.011 |
≤±0.009 |
≤±0.009 |
≤±0.013 |
≤±0.030 |
≤±0.040 |
Temperature
effect
on zero |
%FS/10℃ |
≤±0.023 |
≤±0.015 |
≤±0.010 |
≤±0.010 |
≤±0.014 |
≤±0.030 |
≤±0.020 |
Output
sensitivity |
mv/v |
2.0±0.004（Metric） 3.0±0.008(Imperial) |
Input
resistance |
Ω |
350±3.5 |
Output
resistance |
Ω |
351±2.0 |
Insulation
resistance |
MΩ |
≥ 5000(50VDC) |
| Zero balance |
%FS |
1.5(Metric) 1.0（Imperial） |
Temperature,
compensated |
℃ |
-10～+40 |
Temperature,
operating |
℃ |
-35～+65 |
Excitation,
Recommended |
V |
5～12(DC) |
Excitation,
Max |
V |
18(DC) |
Safe
overload |
%FS |
150 |
Ultimate overload |
%FS |
300 |
