ZEMIC-L6E-50kg

http://www.zemic.com.vn LOADCELL ZEMIC L6E single point load cell, Aluminium-alloy IP65, Colourless anodized, Suitable for pricing scales, counting scales, bench scales, medical scales, etc. Maximum platform size: 400 x 400 mm.in Viet Nam by TPS Scales

Click vào đây để xem hình lớn

< >

Bảng giá Video clip

MODEL	L6E
Maximum Capacity	50kg
Accuracy class	OIML R60 C3
Output sensitivity	2.0 ± 0.2 mv/V
Input resistance	( 406 ± 6 ) Ω
Output resistance	( 350 ± 3 ) Ω
Size loadcell	(150 x 35 x 40)mm
Production by	ZEMIC EURO
Distributor by	www.zemic.com.vn
Certificate	OIML , CE

Giá: 1,250,000 VNĐ

Thông tin chi tiết

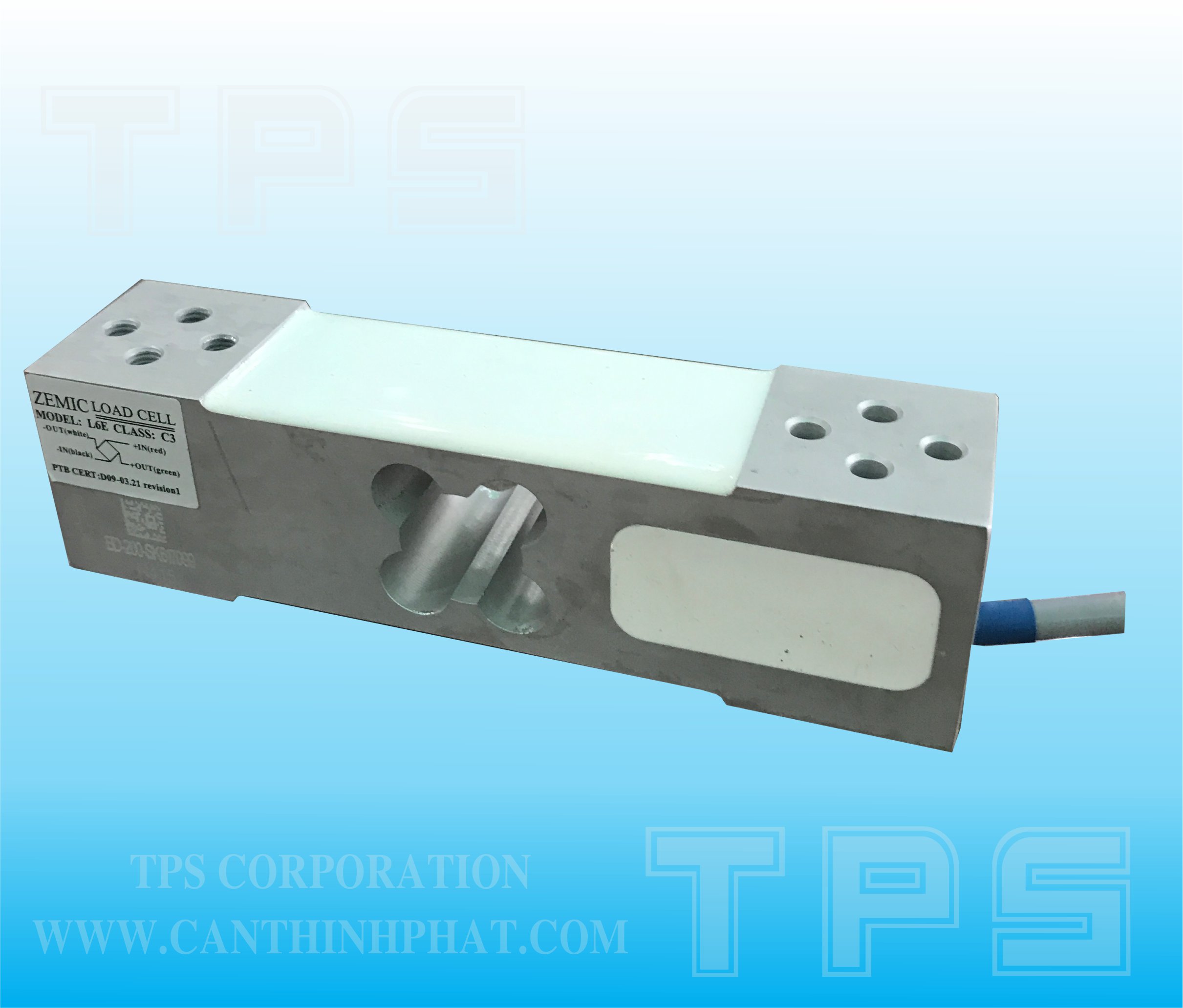

LOADCELL ZEMIC L6E
1. L6E load cells are available in the capacities 50kg to 300kg.
2. Aluminum construction with parallel beam.
3. Silicon adhesive sealed, surface anodized and anti-corrosion.
4. Intergral structure and easy installation.
5. Suitable for pricing scales, platform scales and other electronic weighing devices.
6. High accuracy.
7. Max. platform size: 400x400mm.
8. With OIML approval.

Specifications:

Capacity	(kg)	50/60/80/100/150/200/300
Accuracy		C3D	C3	C3G
Approvals			OIML R60 C3
Maximum number of verification intervals	n max	2500	3000	4000
Minimum load cell verification interval	v min	Emax/5000	Emax/7000	Emax/11000
Combined error	(%FS)	≤±0.030	≤±0.020	≤±0.015
Creep	(%FS/30min)	≤±0.020	≤±0.0167	≤±0.0125
Temperature effect on sensitivity	(%FS/10℃)	≤±0.021	≤±0.0175	≤±0.0131
Temperature effect on zero	(%FS/10℃)	≤±0.028	≤±0.020	≤±0.0127
Output sensitivity	(mv/v)	2.0±0.2
Input resistance	(Ω)	406±6
Output resistance	(Ω)	350±3
Insulation resistance	(MΩ)	≥5000(50VDC)
Zero balance	(%FS)	2
Temperature,compensated	(℃)	-10～+40
Temperature,operating	(℃)	-35～+65
Excitation, Recommended	(V)	5～12(DC)
Excitation,Max	(V)	18(DC)
Safe overload	(%FS)	150
Ultimate overload	(%FS)	300
Corner correction		0.02% load value/100mm
